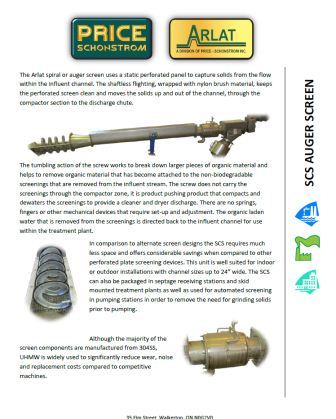

The Arlat SCS spiral or auger screen uses a static perforated panel to capture solids

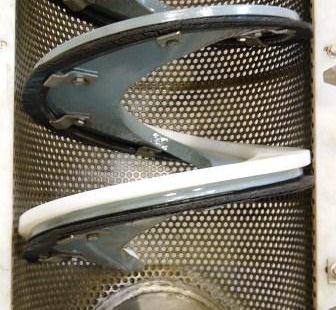

from the flow within the influent channel. The shaftless flighting, wrapped with nylon brush
material, keeps the perforated screen clean and moves the solids up and out of the
channel, through the compactor section to the discharge chute.
The tumbling action of the screw works to break down larger pieces of organic material and
helps to remove organic material that has become attached to the non-biodegradable
screenings that are removed from the influent stream. The screw does not carry the
screenings through the compactor zone, it is product pushing product that compacts and
dewaters the screenings to provide a cleaner and dryer discharge. There are no springs,
fingers or other mechanical devices that require set-up and adjustment. The organic laden
water that is removed from the screenings is directed back to the influent channel for use
within the treatment plant.
In comparison to alternate screen designs the SCS requires much less space and offers
considerable savings when compared to other perforated plate screening devices. This unit

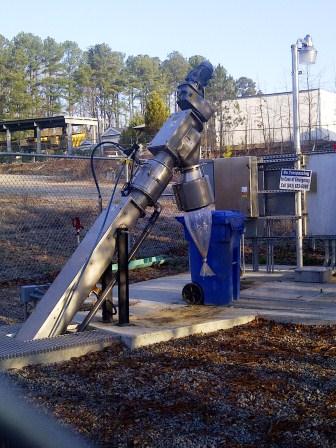

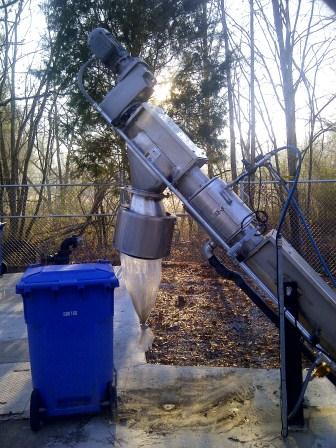

is well suited for indoor or outdoor installations with channel sizes up to 24” wide. The SCS
can also be packaged in septage receiving stations and skid mounted treatment plants as
well as used for automated screening in pumping stations in order to remove the need for
grinding solids prior to pumping.
Although the majority of the screen components are manufactured from 304SS, UHMW is
widely used to significantly reduce wear, noise and replacement costs compared to
competitive machines.
A variety of options are available to best fit your application:
· 316 Stainless frame and component construction for more corrosive installations
· Perforated screening openings range from ¼” to 1/16”, custom sizes and shapes
are available

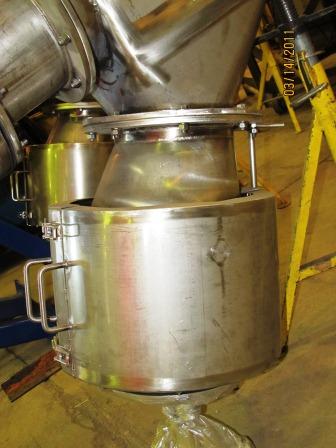

· Discharge bagger option can be used to contain putrescent odours
· Heat tracing for cold weather outdoor installations
· Full PLC control panels are available that can offer;
o Rotation monitoring
o Fluid differential monitoring
o Speed control for the screen drive system
o Continuous mode operation during high flow periods
o Full inlet works package integration
Technical Information:
· Shaftless flighting
o (3) sizes ranges are available to best suit your channel size and
application
o Flighting is constructed from AR400 for wear resistance to promote long
service life
· Material of construction
o Influent screen, 10 Ga perforated plate
o Trough/transport section, formed 12 Ga sheet
o Screw wear liner, ½” UHMW
o Mounting/Pivot frame, painted structural carbon steel
· Drive Assembly
o 2HP and 3HP motors are typical selections for wastewater applications
o Drives are protected from excessive current and over-torque
Head loss calculators are available to aid in selection of the right combination of channel
size and screening spacing for your application
