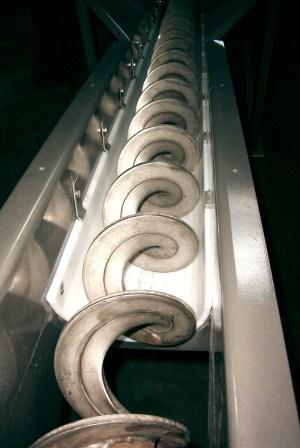

The Arlat SC shaftless screw conveyors are of rugged design with a shaftless spiral
housed within a stainless steel enclosed U-trough. Elimination of the internal shaft results
in higher performance and lower maintenance because it eliminates clogging, wrapping and
bridging. There are no end or hanger bearings common with shafted conveyors. These
conveyors are used in both municipal and industrial applications.
Design is customized to meet project specifications. Spiral screw diameters, pitch,
thickness, length and inclination are determined by type and quantity of material being
conveyed. Screw rotational speed is determined by the application capacity and loading
requirements.

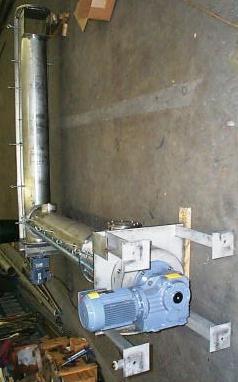

The shaftless screw design can be used in horizontal, inclined and vertical applications.
Arlat protects against wear on the screw and trough with use of replaceable hardened steel
wear bars or UHMW-PE trough liners; this in turn minimizes maintenance costs.
A variety of options are available to best fit your application:
· 316 Stainless frame and component construction for more corrosive installations
· Manual and automatic slide gates can be used at one or more discharge locations
· Discharge bagger option can be used to contain putrescent odours
· Heat tracing for cold weather outdoor installations
· Full PLC control panels are available that can offer;
o Rotation monitoring
o Fluid differential monitoring
o Speed control for the screen drive system
o Continuous mode operation during high flow periods
o Full head works package integration
Technical Information:
· Shaftless flighting
o (3) sizes ranges are available to best suit your channel size and
application
o Flighting is constructed from AR400 for wear resistance to promote long
service life
· Material of construction
o Trough/transport section, formed 12 Ga sheet
o Screw wear liner, ½” UHMW
o Mounting/Pivot frame, painted structural carbon steel

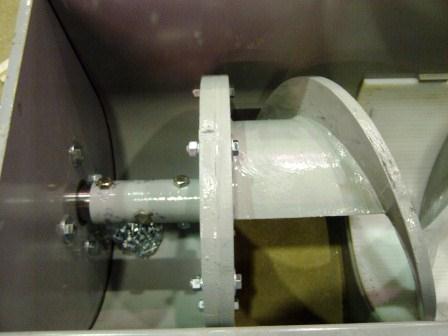

· Drive Assembly
o 2HP motors and larger are typical selections for wastewater applications
o Drives are protected from excessive current and over-torque
· Throughput calculators are available to aid in selection of the right combination of
screw size, pitch, speed and inclination for your application
Head loss calculators are available to aid in selection of the right combination of channel
size and screening spacing for your application.
